100 ml līdz 500 ml mini laboratorijas maisīšanas autoklāva reaktors
100 ml līdz 500 ml mini laboratorijas maisīšanas autoklāva reaktors • Standarta spiediens 100 bar, līdz 250 bar • Standarta temperatūras 250℃ • SS304, SS316, Hastelloy B/C, Monel, Niķelis, Titāns, Cirkonijs, PTFE pēc izvēles. • Liela griezes momenta nulles noplūdes magnētiskās piedziņas savienojums • Moduļa elektriskā apkure. • Monitors, kontrole, piemēram, temperatūra, spiediens, motora ātrums utt. Mini laboratorijas reaktors | laboratorijas spiediena reaktors | Laboratorijas autoklāva reaktors | mini reaktors | Mazie spiediena reaktori, 100 ml spiediena reaktori, 500 ml spiediena reaktori
- HXCHEM
- Ķīna
- 25 dienas pēc maksājuma
- 40 komplekti/mēn
Sīkāka informācija

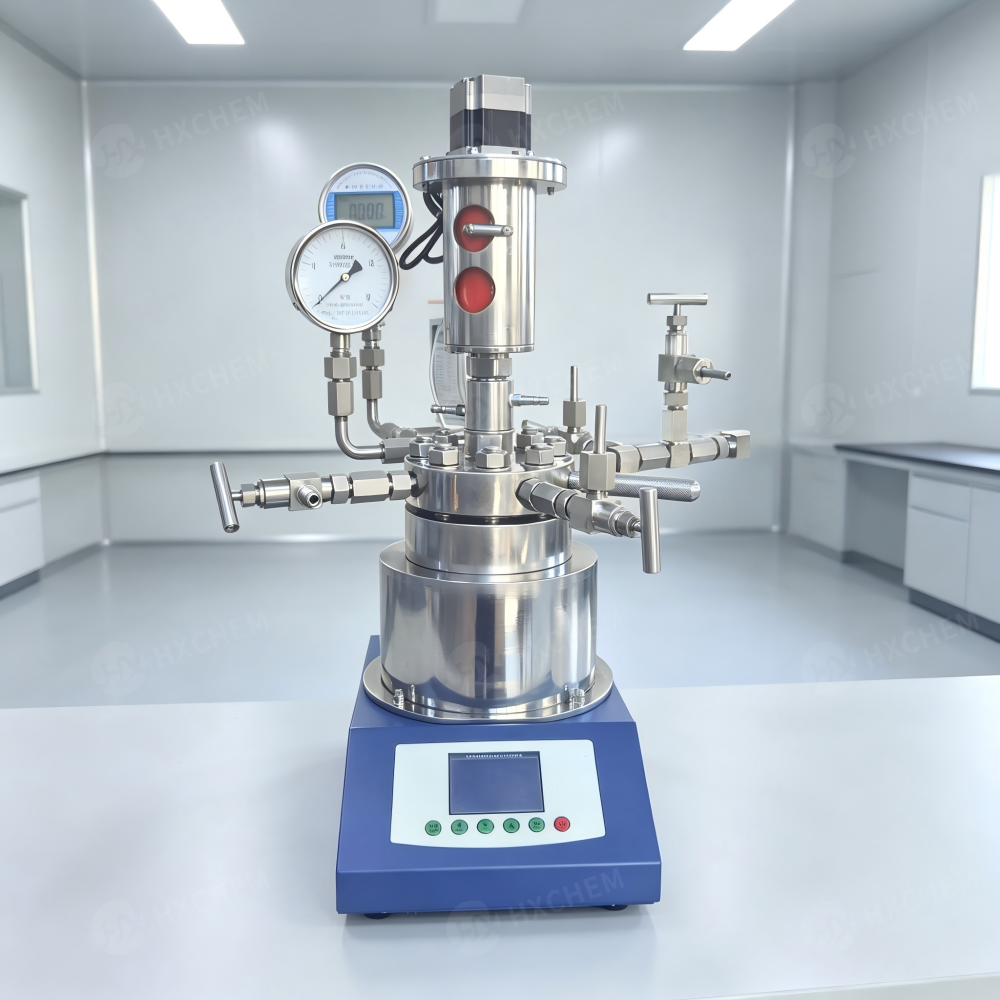

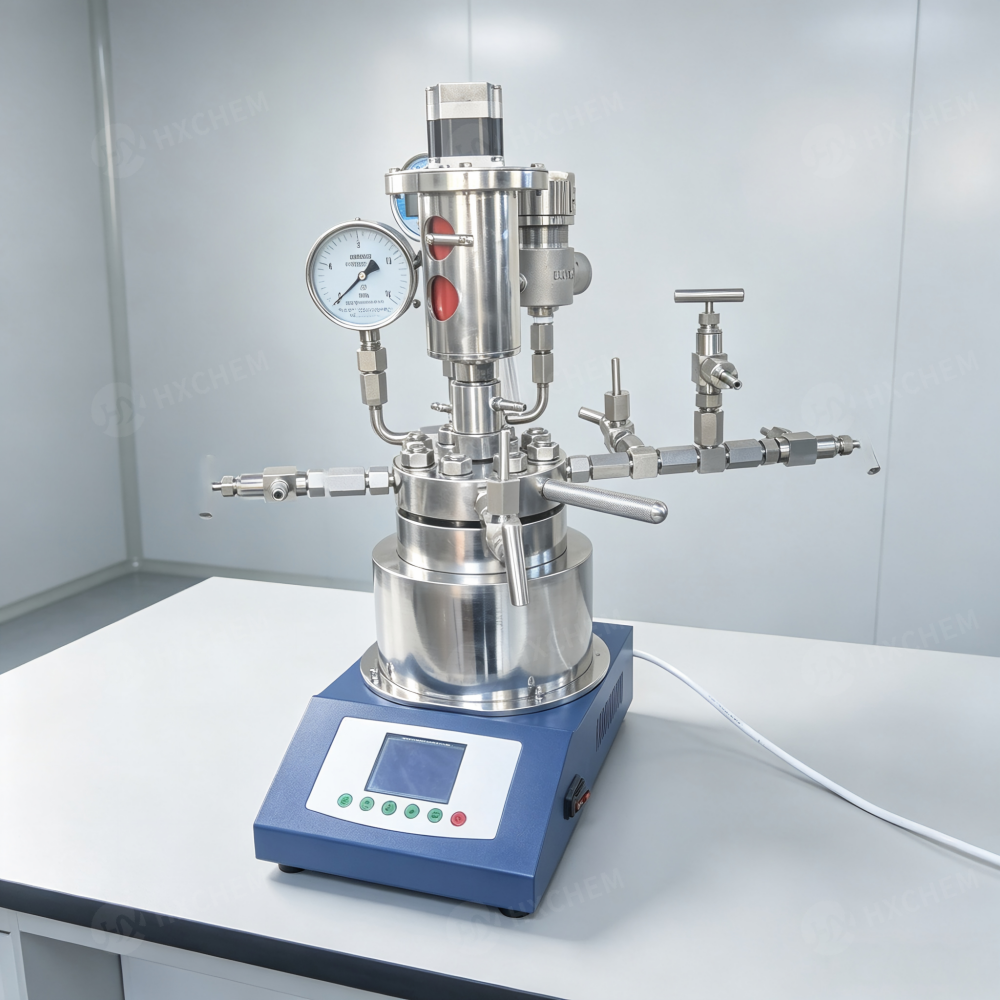

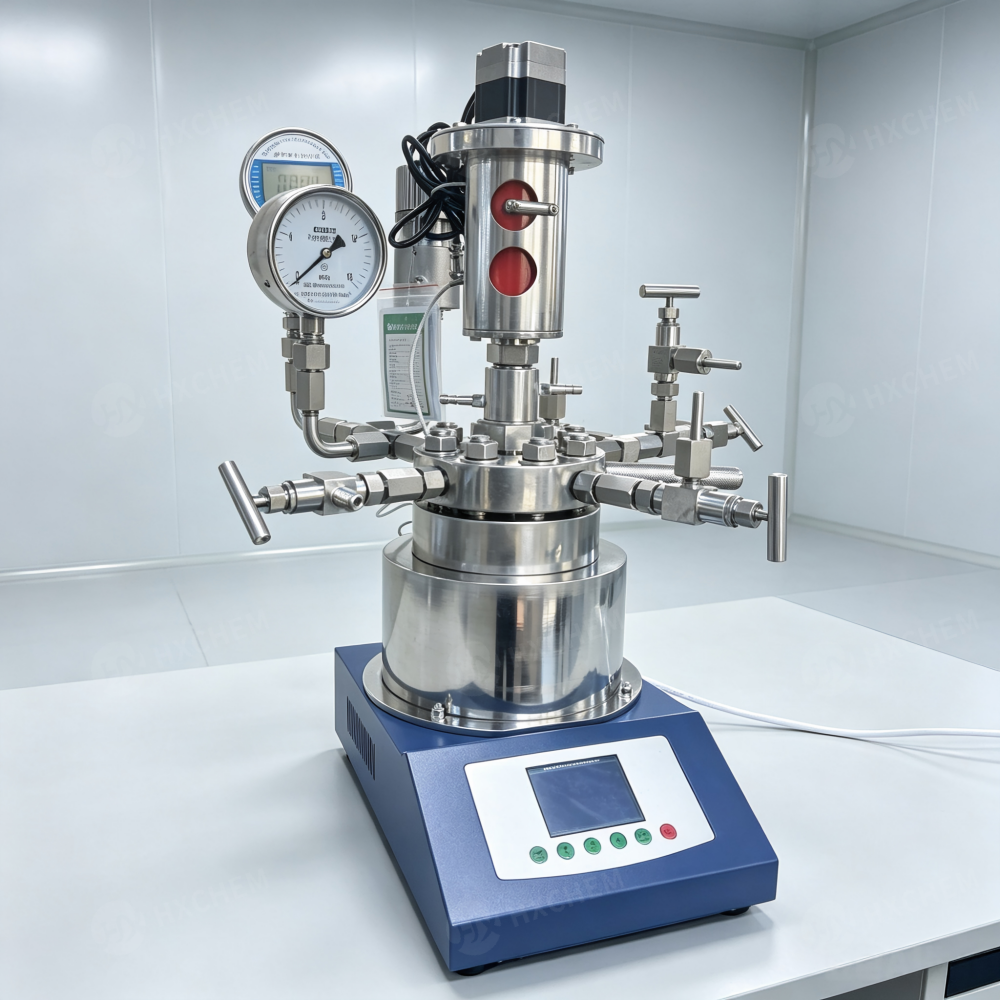

Mini laboratory stirred autoclave reactor
100ml to 500ml; Laboratory reaction
HXHCEM mainly offer pressure reactors , high pressure autoclave and high pressure vessels according the customers requires. These small pressure vessels, non-stirred pressure reactors and pressure reactor vessels can be designed upto 350 bar and 350°C. These equipment can also be made out of Stainless steel, Hastelloy C, Inconel, Titanium, Zirconium, etc.
• GSH model mini stirred autoclave reactor
• Standard pressures 100bar;
• Standard temperatures 250℃
Mini lab reactor | laboratory pressure reactor | Lab autoclave reactor | mini reactor | Small pressure reactors | 100ml pressure reactors | 500ml pressure reactors
Features
Laboratory autoclaves with 50ml to 1 liters volume.
Srandard pressure: 100bar; Max temperature up to 300 ℃
High torque zero leakage magnetic drive coupling
Module electric heating.
Monitor, control like temperature, pressure, motor speed, etc.
High safety, easy operation, use little solvent, nice appearance.
Available material:SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel
Standard specification
Bench top pressure reactor standard specification table
| Model | GSH-0.05 | GSH-0.1 | GSH-0.25 | GSH-0.5 | GSH-1 |
| Material capacity | 50ml | 100ml | 250ml | 500ml | 1000ml |
| Max temperature | Standard 300°C,maximum up to 400°C | ||||
| Operate pressure | Standard l00bar; Max pressure up to 250bar | ||||
| Heating mode | Module heating; | ||||
| The heating power | 600W | 600W | 1.5KW | 2.0KW | 2.0KW |
| Stining speed | 0-1500rpm | ||||
| Stirring method | Top mechanical stirring with magnetic drives | ||||
| The stirring power | 150W | 150W | 200W | 200W | 200W |
| MOC | Standard SS316L （Titanium, Hastelloy C-276 optional) | ||||
| Standard | 1 x Liquid/Sampling port with ferrules needle valve and dip tube; 1 xGas port with needle valve; Pressure sensor with burst dise; Temp. port with PT100 sensor; Internal cooling coils(Optional) | ||||
Customer is advised to select best suited options for most optimized price & delivery.
