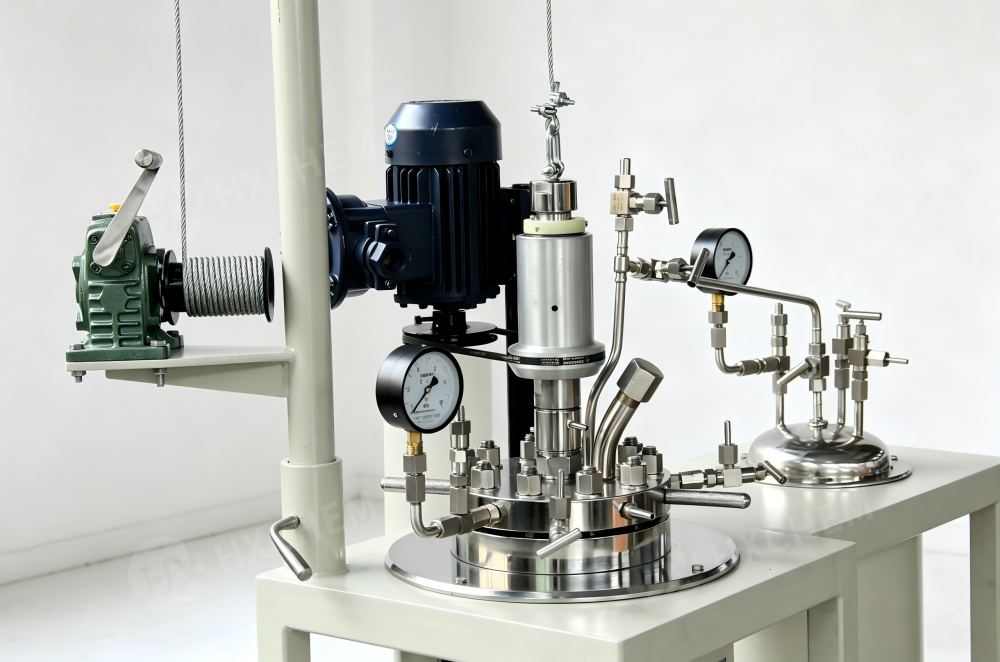

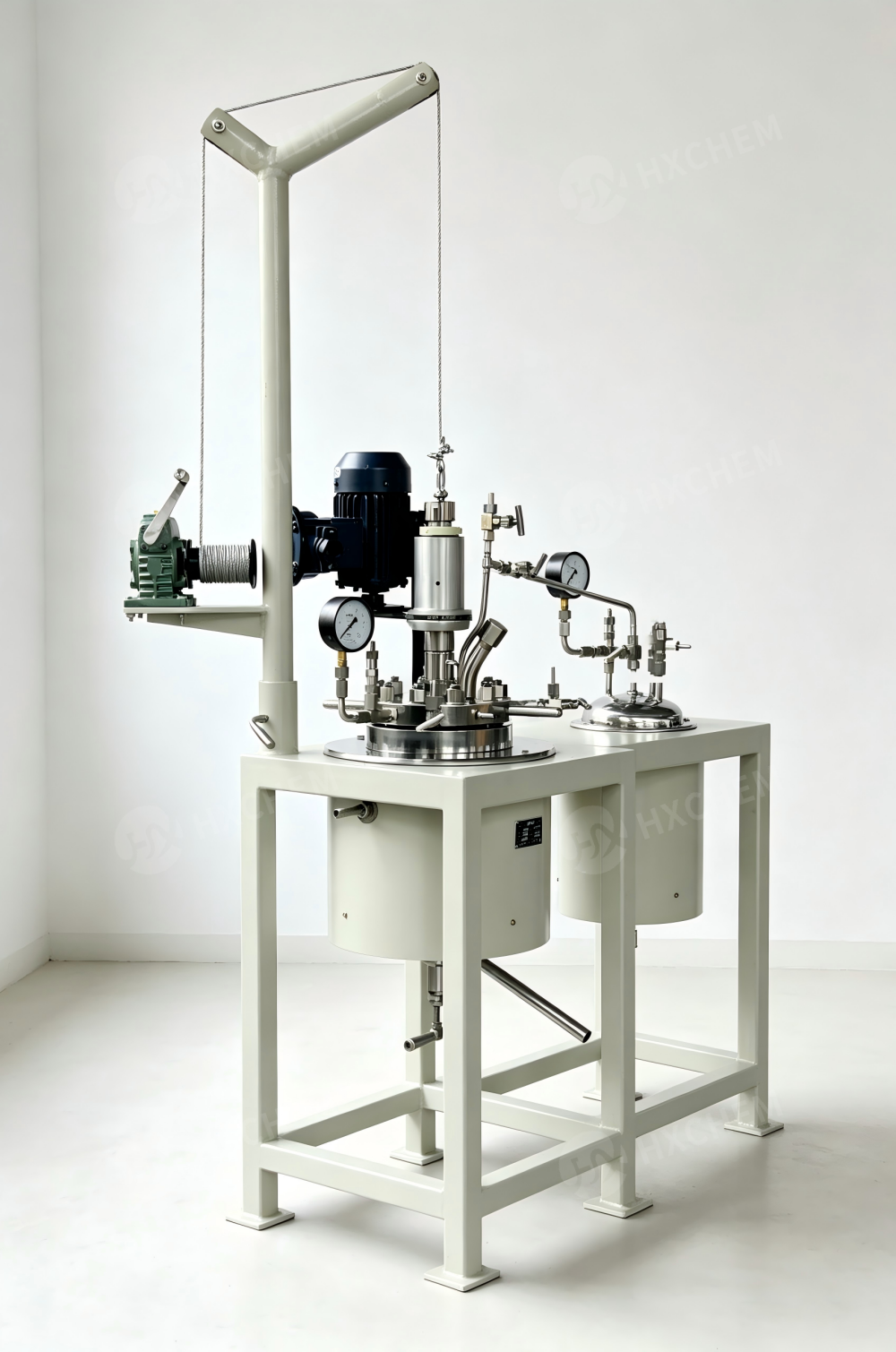

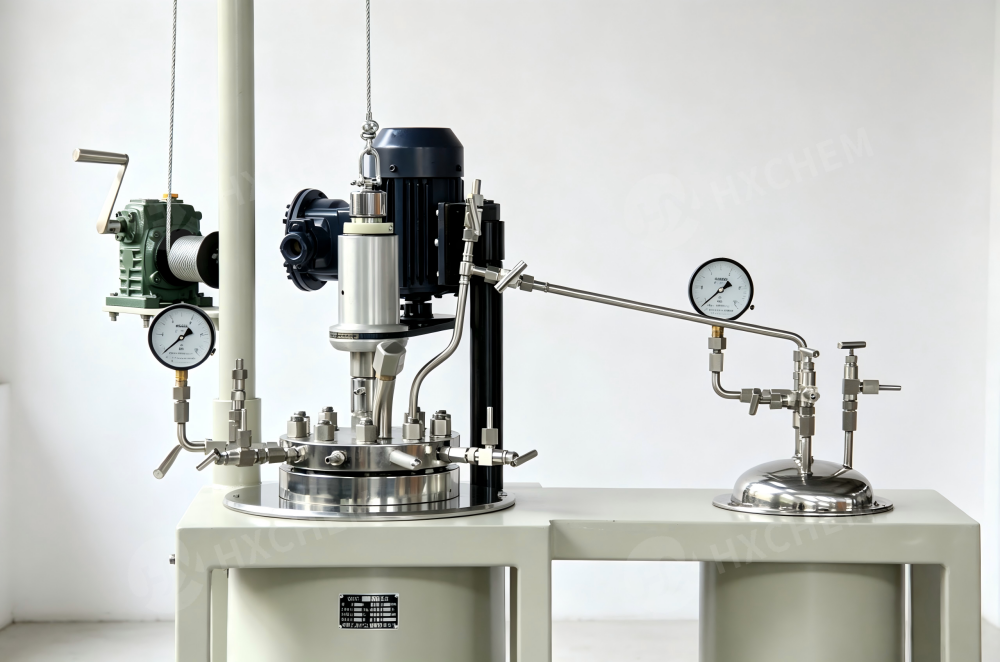

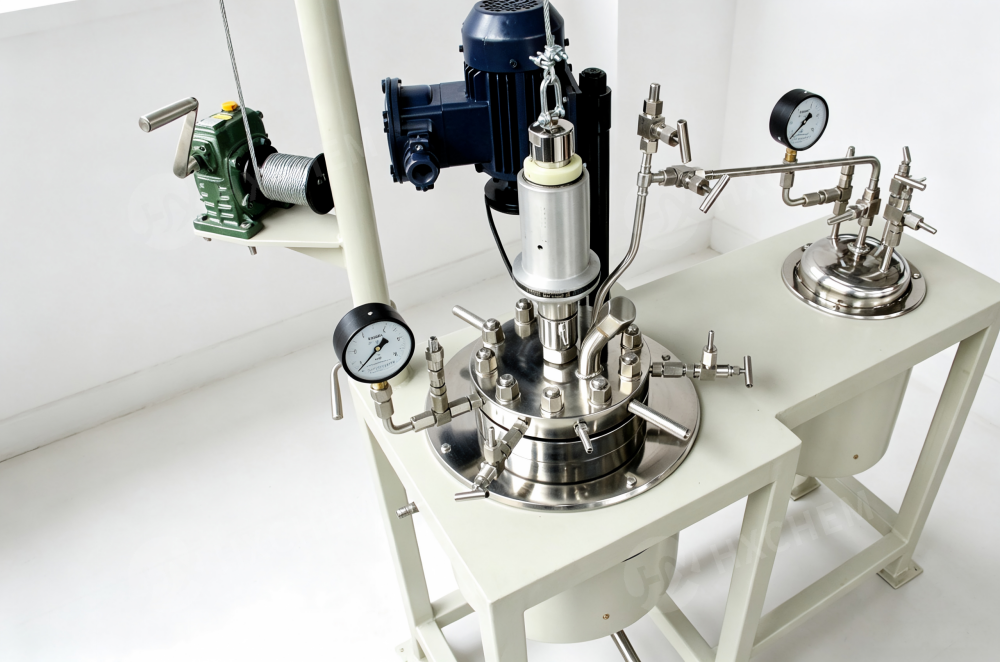

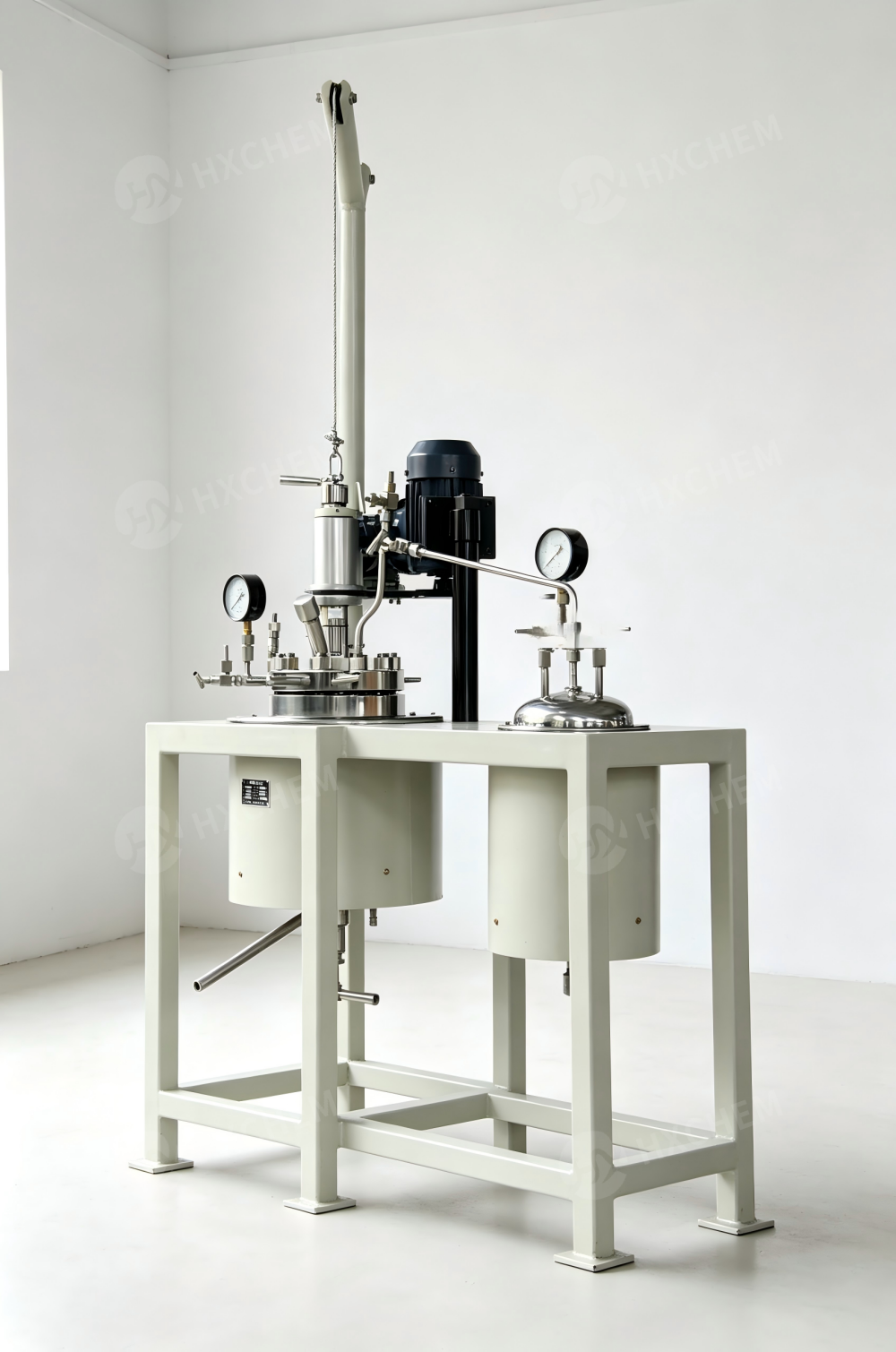

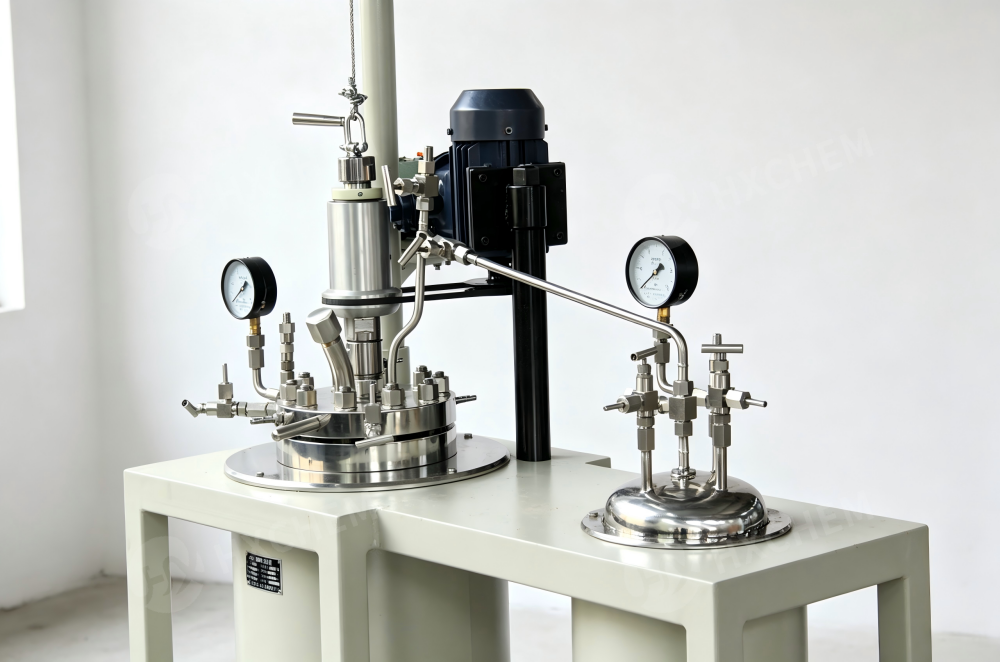

5 litru laboratorijas spiediena reaktors ar uztvērēju
*Reaktora tilpums: 1,0-5,0 litri Darba spiediens: 100 bar Spiediena reaktors; Maisītā spiediena reaktors; Laboratorijas spiediena reaktors; Laboratorijas reaktors ar pacelšanu; Laboratorijas maisāmie autoklāvi; Pilotklāvs; 5 litru laboratorijas spiediena reaktors ar uztvērēju
- HXCHEM
- ĶĪNA
- 20 dienas pēc maksājuma veikšanas
- 30 KOMPLEKTĀJI MĒNESĪ
Sīkāka informācija
Stirola butadiēns
Alkoksilēšana
Destilācija
EtoksilēšanaHidrokrekings
DehidrogenēšanaOksidācija
Fišera trofiskā karboksilēšanaŠķidruma katalītiskā krekinga
Bioreaktīvo degvielas ražošana: Stainless steel 304/316, Hastelloy C276, Titanium
Features: Euipped with external receiver with control element;
Euipped with bottom drain valve
Other materials, pressures & temperatures are available.
Features
Flat cover lid: Lifting & lowering functions
Closure type: Flange type with bolts closure
Shaft seal: Magnetic coupling drive
Reactor vessel: Fixed
Other devices: Euipped with external receiver with control element; Euipped with bottom drain valve

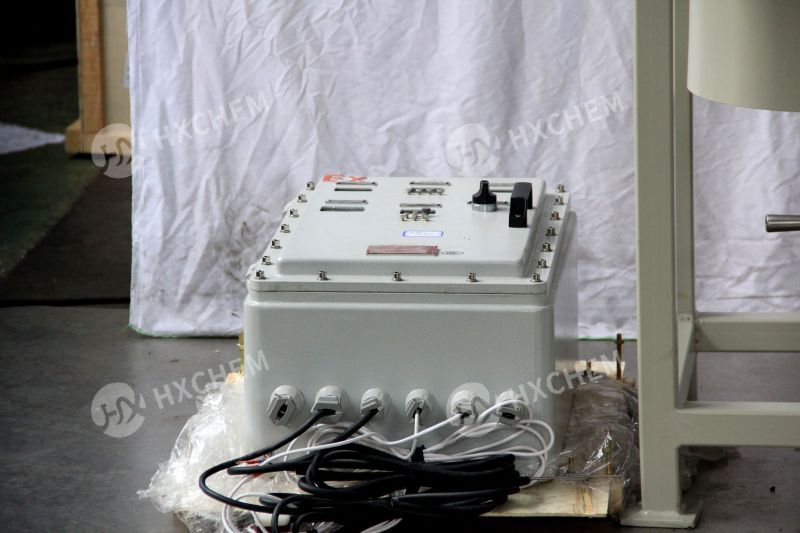

Control: PID temperature control.
Standard specfications
GSH lifting reactor standard specification table.
| Model No. | GSH-5 | GSH-10 | GSH-20 | GSH-30 | GSH-40 | GSH-50 |
| Nominal Capacity | 5liters | 10liters | 20liters | 30liters | 40liters | 50liters |
| Max Working Pressure | Standard 100bar; Max pressure up to 250bar | |||||
| Working Temperature | Standard 350°C；Up to 500°C | |||||
| Stirring Speed | 0-750rpm | 0-500rpm | ||||
| Motor Power | 600W | 600W | 1.1kW | 1.5kW | 1.5kW | 3KW |
| Heating Power | 4kW | 9kW | 9kW | 12kW | 12kW | 15kW |
| Closure | Flange bolts closure/ Clamp closure | |||||
Lifting & lowering | Manual crain lifting/ Electric crain lifting | |||||
| Material | SS304,SS316 or other alloys(Titanium, hastelloy, Inconel, Nickel, etc) | |||||
| Heating Method | Electric heating or Jacket heating | |||||
| Cooling | Internal spiral coils（Optional） | |||||
| Charging Method | Up discharge by pressure or discharge by bottom valve | |||||
| Impeller (Optional) | Propeller, paddle type, turbine, anchor type, gas induction, helix type, etc. | |||||
| Control panel | Temp.display and control, accuracy+ 1℃, Stirring speed display & control Touch screen program control(Optional) | |||||
| Standard fittings | Pressure Gage, Thermocouple, Central stirring port Liquid inlet/ Sampling port with needle valve & dip tube and gas inlet with needle valve Safety Rupture Disc: Internal cooling Coil(Optional); Solid feeding plug(Optional) | |||||
Product Details
Applications
Hydrogenation, Catalyst Screening / Testing
Polymerization
Styrene Butadiene
Alkoxylation
Distillation
Ethoxylation
Hydrocracking
Dehydrogenation
Oxidation
Fischer TrophCarboxylation
Fluid Catalytic Cracking
Biojet Fuel production
