50 litru spiediena reaktori ar elektrisko pacelšanas mehānismu
50 litru spiediena reaktori ar elektrisko pacelšanu; 50 litru spiediena reaktori; 50 litru spiediena reaktori; spiediena reaktori ar elektrisko pacelšanu; pilotreaktori; pilotautoklāvi; Hastelloy reaktori; titāna reaktori
- HXCHEM
- ĶĪNA
- 20 dienas pēc apmaksas
- 30 komplekti mēnesī
Sīkāka informācija
50L pressure reactors with electric lifting deices
Pilot pressure reactor/ autoclaves
Introduction
This kinds 50liters autoclaves/ 50liters pressure reactors equipped with belt driven magnetic coupling agitator, pressure maximum up to 120bar, temperatrue up to 300C, the wet material fabricate in SS316L. High efficiency hollow gas induction impellers design help this autoclave applicated in hydrogenation or gas-liquid reaction. This series stirred pressure autoclave is widely used in laboratory or pilot reactors.
Features
Volume: 20liters, 30liters, 40liters; 50liters
Maximum pressure: 25bar; 50bar; 100bar
Mximum temperature:200Cl; 300C; 350C
Material: SS316L

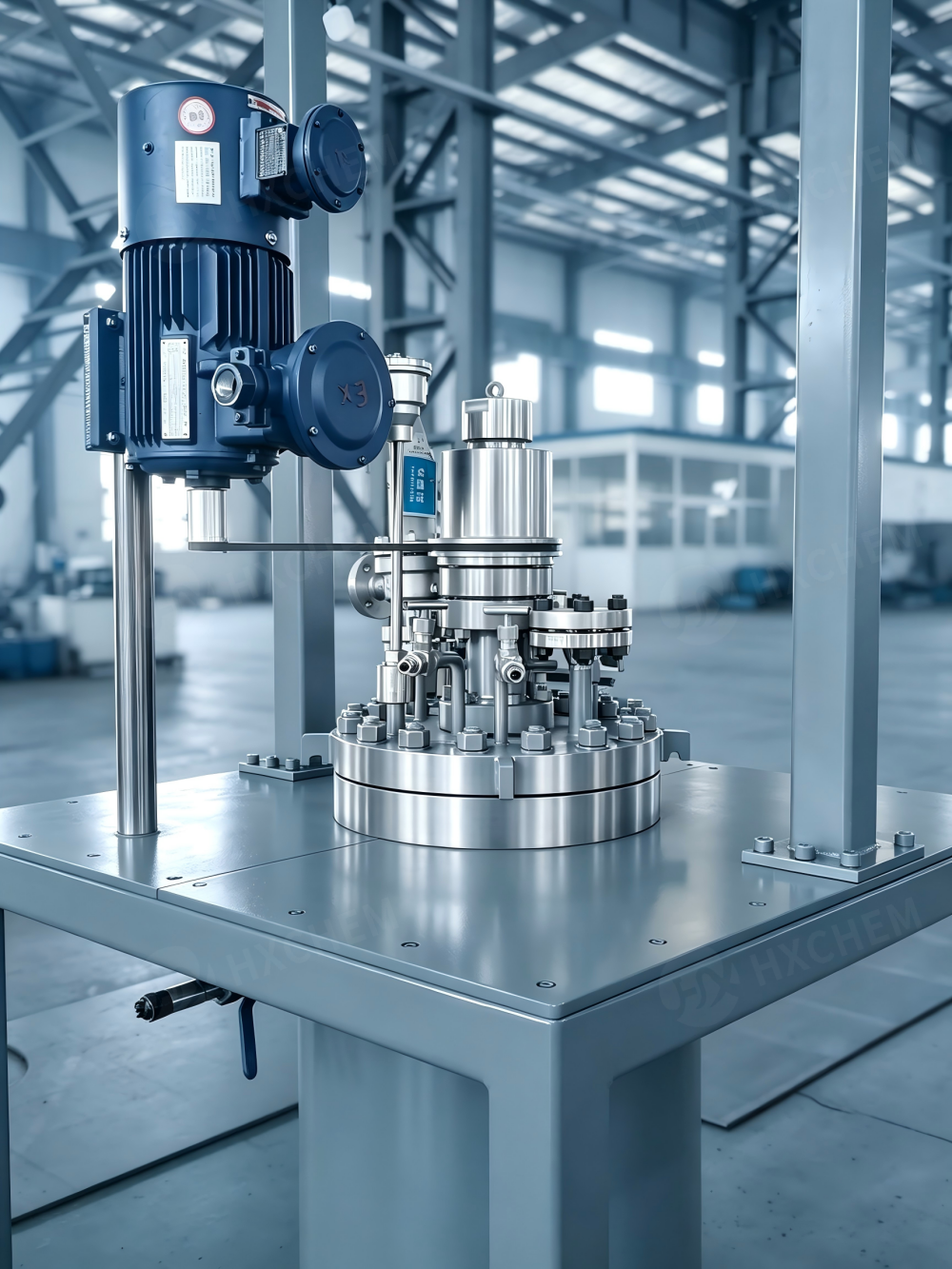

Magnetic coupling driven agiator

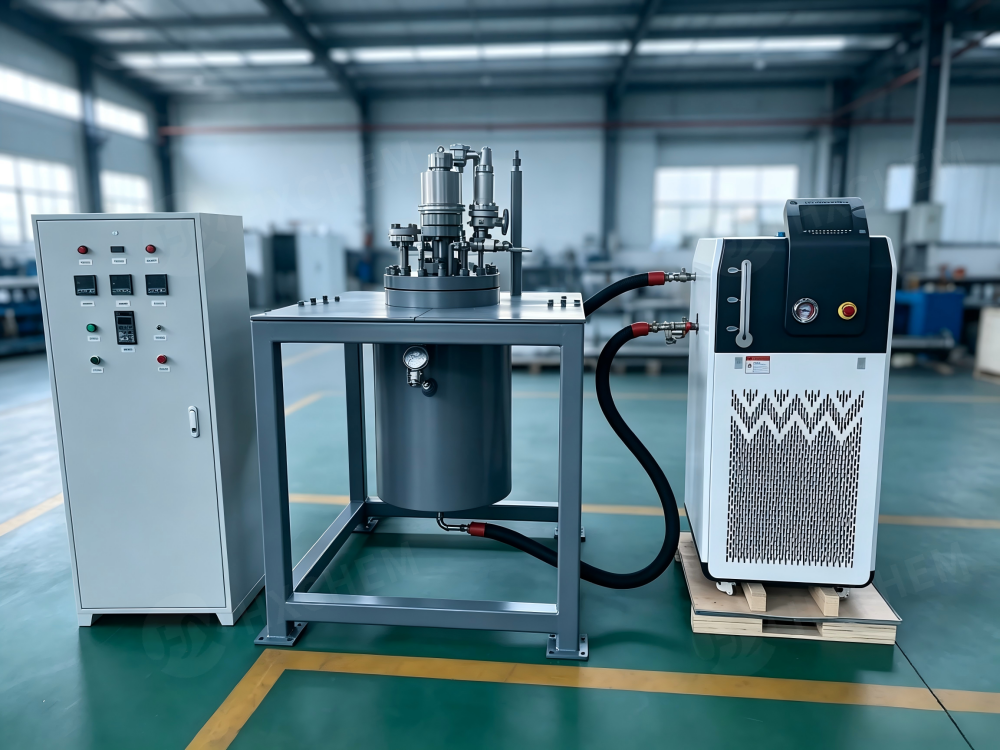

Heating method: Oil jacket heating with external oil heater;
Internal cooling coils, dip tube, shaft, gas induction impeller

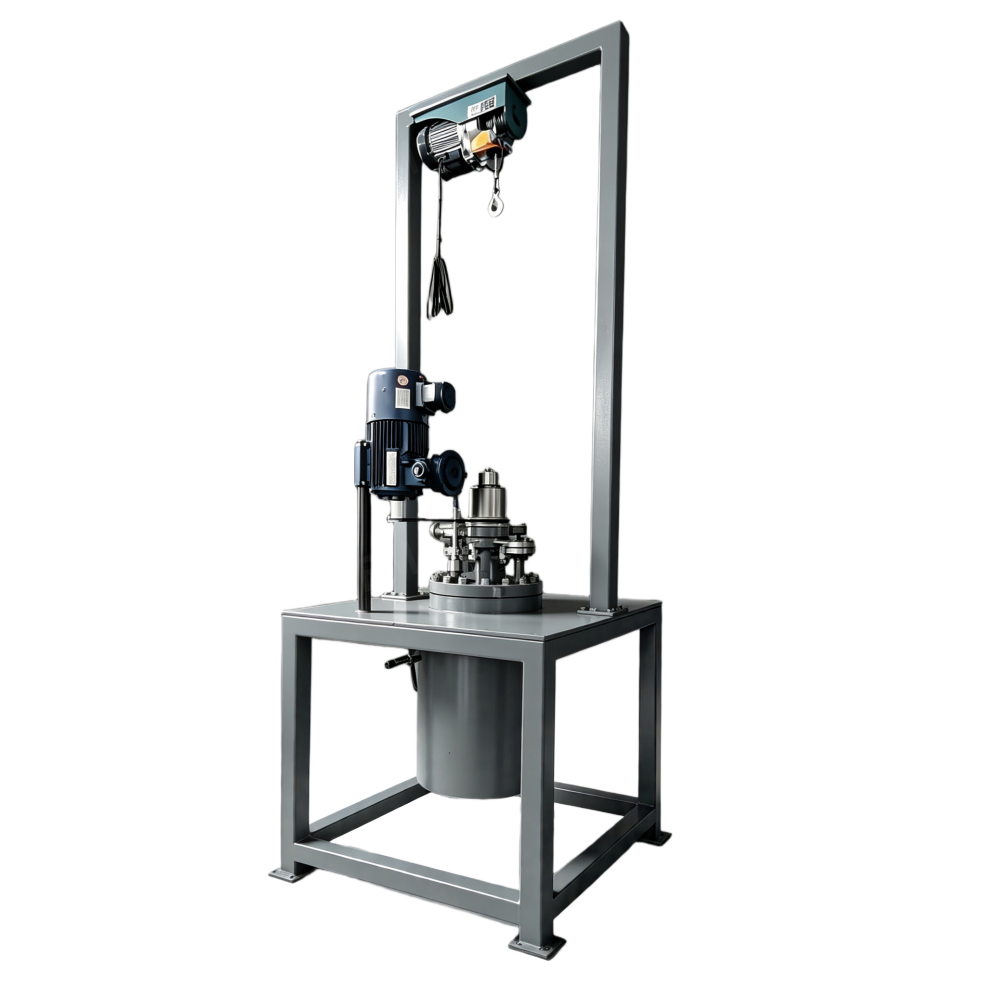

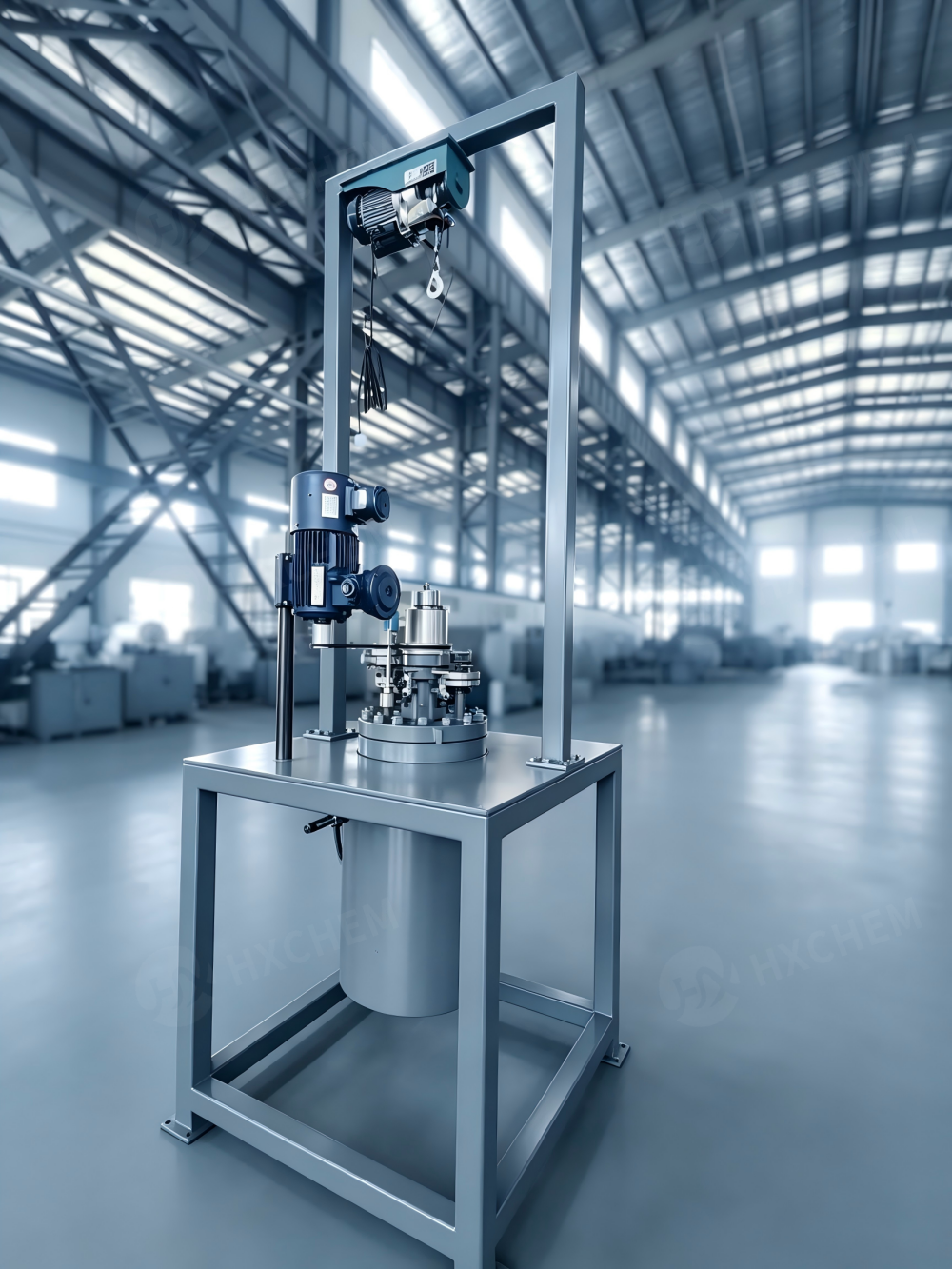

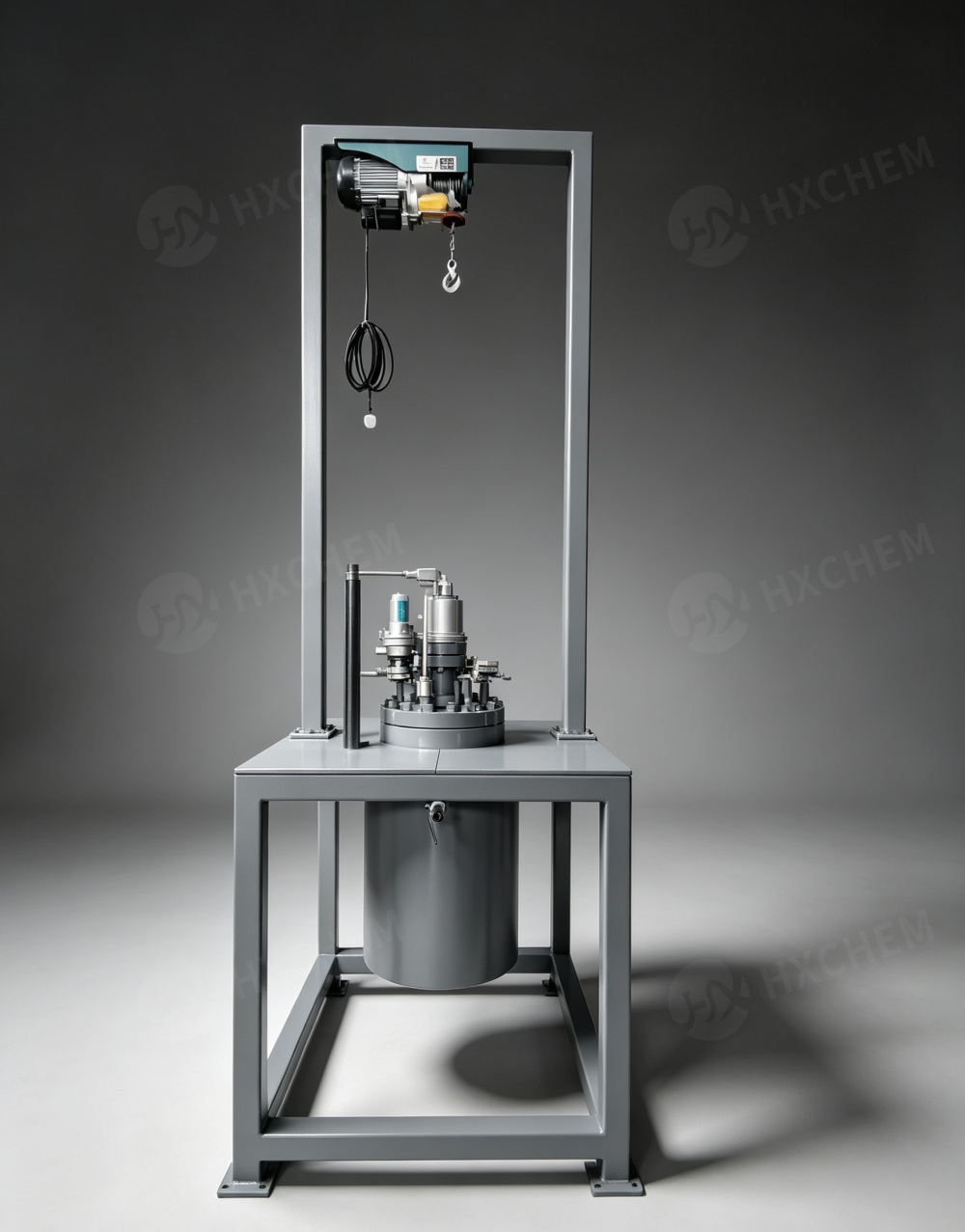

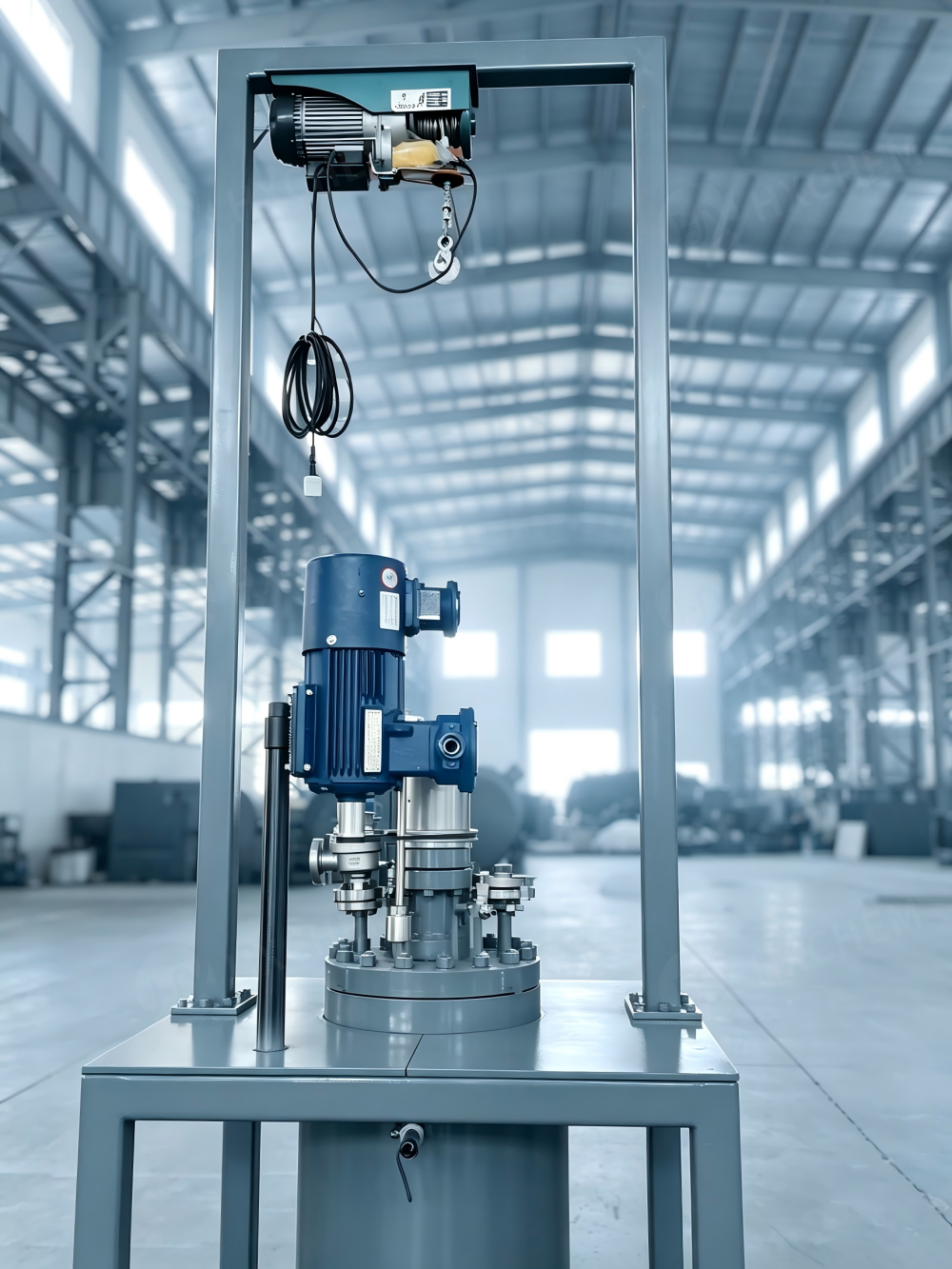

Electric crain lifting devices for heavy lid lifting and lowering.
Satey valve; feeding port; sampling port; vent port with valve.

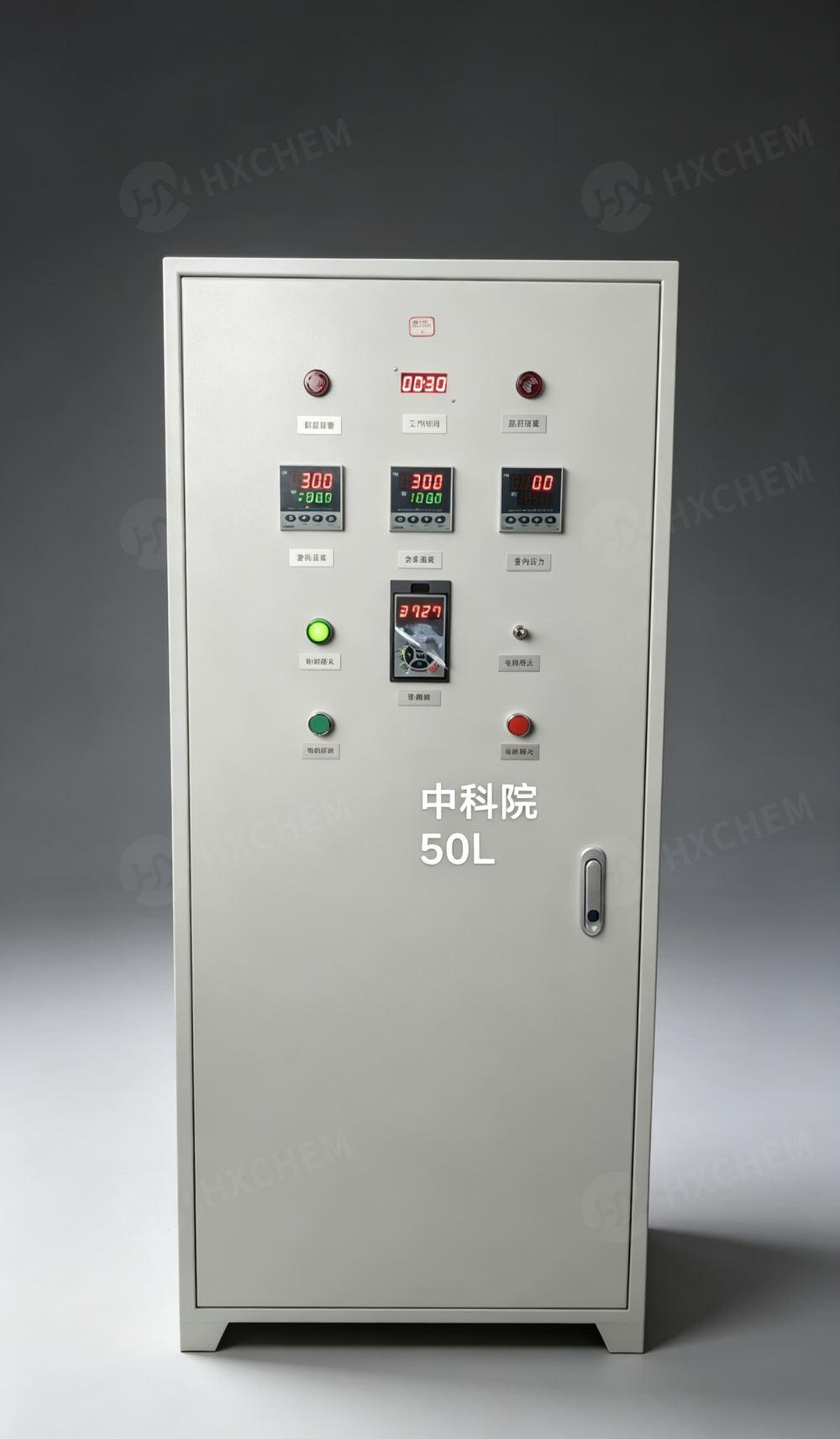

Button control cabinet: PLC Touch screen optional;
Temp. pressure display and data record. Temp. pressure alarm
Standard specfications
GSH lifting reactor standard specification table.
| Model No. | GSH-5 | GSH-10 | GSH-20 | GSH-30 | GSH-40 | GSH-50 |
| Nominal Capacity | 5liters | 10liters | 20liters | 30liters | 40liters | 50liters |
| Max Working Pressure | Standard 100bar; Max pressure up to 250bar | |||||
| Working Temperature | Standard 350°C；Up to 500°C | |||||
| Stirring Speed | 0-750rpm | 0-500rpm | ||||
| Motor Power | 600W | 600W | 1.1kW | 1.5kW | 1.5kW | 3KW |
| Heating Power | 4kW | 9kW | 9kW | 12kW | 12kW | 15kW |
| Closure | Flange bolts closure/ Clamp closure | |||||
Lifting & lowering | Manual crain lifting/ Electric crain lifting | |||||
| Material | SS304,SS316 or other alloys(Titanium, hastelloy, Inconel, Nickel, etc) | |||||
| Heating Method | Electric heating or Jacket heating | |||||
| Cooling | Internal spiral coils（Optional） | |||||
| Charging Method | Up discharge by pressure or discharge by bottom valve | |||||
| Impeller (Optional) | Propeller, paddle type, turbine, anchor type, gas induction, helix type, etc. | |||||
| Control panel | Temp.display and control, accuracy+ 1℃, Stirring speed display & control Touch screen program control(Optional) | |||||
| Standard fittings | Pressure Gage, Thermocouple, Central stirring port Liquid inlet/ Sampling port with needle valve & dip tube and gas inlet with needle valve Safety Rupture Disc: Internal cooling Coil(Optional); Solid feeding plug(Optional) | |||||
